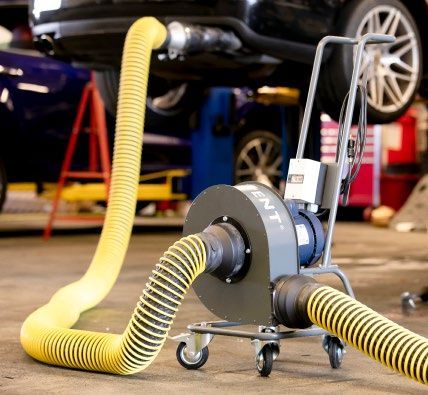

Hose selection Guide
Options for proper vehicle exhaust extraction in your facility.
Plymovent’s selection guide for low and high-temperature hoses is based on exhaust temperatures, and how vehicles will be operated, as well as the duration of the operation within the facility. For Plymovent Fire and EMS systems, we provide a proprietary hose construction specifically designed for this market in a standard and high-temperature version. Note: Plymovent Vehicle Exhaust Extraction (VEX) hose products are not designed to be used for fire systems.

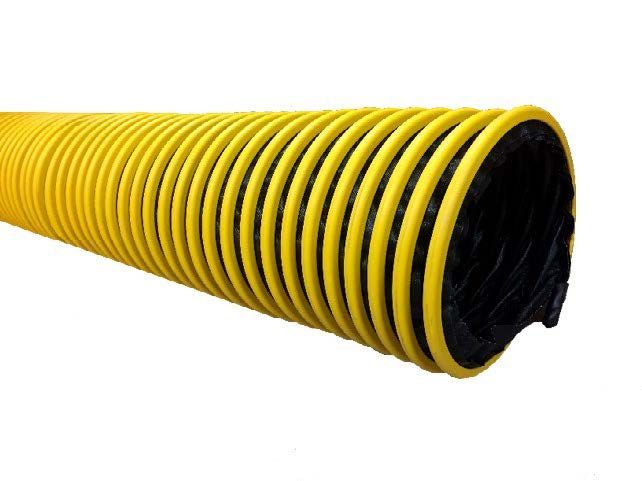

EG2
Applications: Designed for fleet maintenance service facilities, vo-tech centers, transit service
garages and related automotive service facilities.
Materials: Made up of an external steel helix and composite fabric that can endure exhaust gas
temperatures of up to 350°F (177°C) continuous. Intermittently, the EG2 hose can endure 400°F
(204°C), provided a fan and exhaust nozzle are appropriately used.
Standard Lengths: Available in 16 ft (5 m), 25 ft (7.5 m), 33 ft (10 m) and 41 ft (12.5 m). Custom
lengths available upon request.
DIAMETERS AND WEIGHT AVAILABLE
- 4 in. (100 mm) / 0.81 lbs/ft (1,21 kg/m)
- 5 in. (125 mm) / 0.87 lbs/ft (1,29 kg/m)
- 6 in. (150 mm) / 0.96 lbs/ft (1,42 kg/m)
- 8 in. (200 mm) / 1.33 lbs/ft (1,98 kg/m)

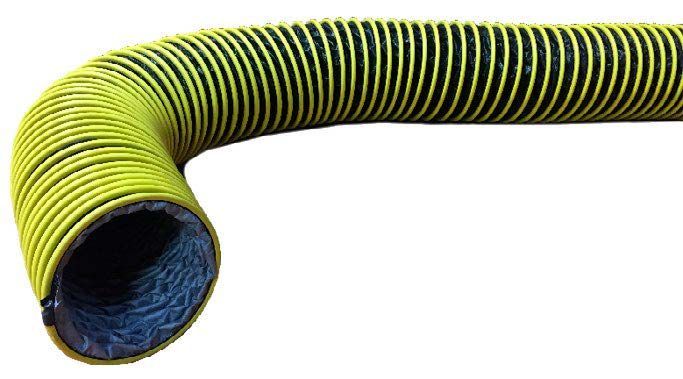

EF2
Applications: Designed for fleet maintenance service facilities, vo-tech centers, mass transit service garages and other facilities in which heavy-duty vehicles are generating hazardous exhaust fumes. This is a good hose for Diesel Exhaust applications in fleet maintenance facilities.
Materials: Made up of a hiqh-quality synthetic composite fabric that can endure exhaust gas temperatures of up to 570°F (300°C) continuous. Intermittently, the EF2 hose can endure 660°F (350°C), provided a fan and exhaust nozzle are used properly.
Standard Lengths: Available in 16 ft (5 m), 25 ft (7.5 m), 33 ft (10 m) and 41 ft (12.5 m). Custom lengths available upon request.
DIAMETERS AND WEIGHT AVAILABLE
- 4 in. (100 mm) / 0.81 lbs/ft (1,21 kg/m)
- 5 in. (125 mm) / 0.87 lbs/ft (1,29 kg/m)
- 6 in. (150 mm) / 0.96 lbs/ft (1,42 kg/m)
- 8 in. (200 mm) / 1.33 lbs/ft (1,98 kg/m)

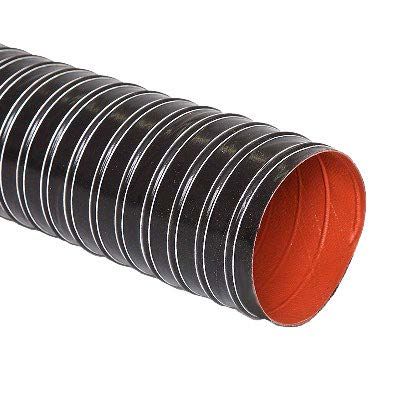

SNF 2
Applications: Designed for facilities where heavy-duty diesel trucks/buses are being serviced. Because SNF2 is lightweight, it’s suitable for a Spring Recoil hose reels or Fixed Extractors.
Materials: Made of light-weight, high temperature double ply exhaust hose that can endure temperatures of up to 600°F (315°C) continuous. Intermittently, SNF2 can endure 1250°F (670°C), provided a fan and exhaust nozzle are used properly.
Standard Lengths: Available in standard lengths minimum of 12 ft (3,7 m). Custom lengths available upon request.
DIAMETERS AND WEIGHT AVAILABLE
- 4 in. (100 mm) / 0.5 lbs/ft. (0,75 kg/m)
- 5 in. (125 mm) / 0.6 lbs/ft. (0,90 kg/m)
- 6 in. (150 mm) / 0.65 lbs/ft. (0,99 kg/m)
- 8 in. (200 mm) / 0.80 lbs/ft (1,2 kg/m)

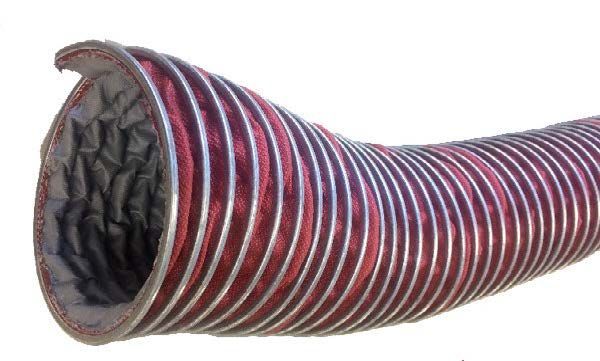

HIGH TEMPERATURE (HT) EXHAUST HOSE - 750
Applications: Designed to withstand high heat when extracting exhaust from spark ignition or diesel engines. The hose is especially suitable when working with trucks or construction machines that produce hot exhaust.
Materials: Made of light-weight, high temperature double ply with an external helix. The hose can endure temperatures of up to 750°F (400°C) continuous. Intermittently, the HT-750 hose can endure momentary spike temperatures of 840°F (450°C), provided a fan and exhaust nozzle are appropriately used.
Standard Lengths: Sold by the foot, with a minimum purchase off 10 ft (3 m)
DIAMETERS AND WEIGHT AVAILABLE
- 4 in. (100 mm) / 0.84 lbs/ft (1,25 kg/m)
- 5 in. (125 mm) / 1.05 lbs/ft (1,56 kg/m)
- 6 in. (150 mm) / 1.15 lbs/ft (1,71 kg/m)
- 8 in. (200 mm) / 1.53 lbs/ft (2,28 kg/m)

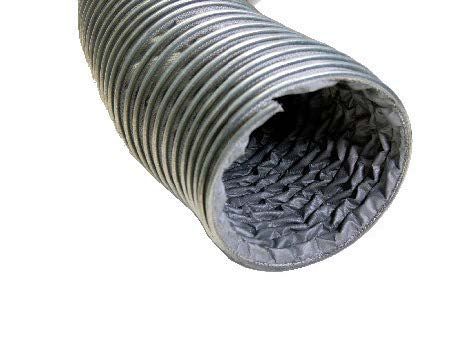

HIGH TEMPERATURE (HT) EXHAUST HOSE - 1000
Applications: Designed for heavy load and dyno applications, CNG gas exhaust systems, or wherever very high temperature exhaust fumes exist.
Materials: Silver, two ply, high temperature fabric. Inner hose wall is a heat resistant impregnated glass fabric, outer hose wall is a special coated high temperature, asbestos free fabric, reinforced by woven in stainless steel wire. Galvanized steel helix. Temperature resistance is 1000°F (538°C) continuous and 1200°F (650°C) spike. The plastic helix cover is not available due the high heat capacity.
Standard Lengths: Sold by the foot, with a minimum purchase of 10 ft (3 m).
DIAMETERS AND WEIGHT AVAILABLE
- 4 in. (100 mm) / 0.84 lbs/ft (1,25 kg/m)
- 5 in. (125 mm) / 1.05 lbs/ft (1,56 kg/m)
- 6 in. (150 mm) / 1.15 lbs/ft (1,71 kg/m)
- 8 in. (200 mm) / 1.53 lbs/ft (2,28 kg/m)
EXTREME TEMPERATURE (ET) EXHAUST HOSE - 1200
Applications: Designed for heavy load and dyno applications, military exhaust, CNG gas exhaust systems, or wherever very high temperature exhaust fumes exist.
Materials: Made of red fabric, two-layer construction. The inner and outer hose walls are asbestos free high temperature fabric, specially coated with heat stabilizers, reinforced by woven in stainless steel wire that withstands high heat when extracting exhaust from spark ignition engines or diesel engines. Temperature resistance is 1200°F (650°C) continuous and 1380°F (750°C) spike. The plastic helix cover is not available due the high heat capacity.
Standard Lengths: Available in 25 ft (7,6 m). Custom lengths available upon request.
DIAMETERS AND WEIGHT AVAILABLE
- 4 in. (100 mm) / 1.07 lbs/ft (1,60 kg/m)
- 5 in. (125 mm) / 1.33 lbs/ft (1,98 kg/m)
- 6 in. (150 mm) / 1.58 lbs/ft (2,35 kg/m)
- 8 in. (200 mm) / 2.1 lbs/ft (3,12 kg/m)
HIGH TEMPERATURE (HT) EXHAUST HOSE - 1500
Applications: Made up of two-layer construction. The inner and outer hose walls are asbestos free high temperature fabric, specially coated with heat stabilizers, and reinforced by woven in stainless steel wire. The external helix is galvanized steel.
Materials: Made with three ply construction. All fabric is asbestos free, specially coated with high temperature stabilizers. One ply is a woven stainless steel cloth used for strength and stability. Temperature resistance is 1500°F (816°C) , with a spike temperature of 1680°F (916°C). The plastic
helix cover is not available due to the high heat capacity.
Standard Lengths: Sold by the foot, with a minimum purchase of 10 ft (3 m)
DIAMETERS AND WEIGHT AVAILABLE
- 4 in. (100 mm) / 1.07 lbs/ft (1,60 kg/m)
- 5 in. (125 mm) / 1.33 lbs/ft (1,98 kg/m)
- 6 in. (150 mm) / 1.58 lbs/ft (2,35 kg/m)
- 8 in. (200 mm) / 2.1 lbs/ft (3,12 kg/m)
EXTREME TEMPERATURE (ET) - 2010
Applications: Designed Ideal for dyno testing environments, CNG exhaust and related fume extraction, as well as military exhaust facilities and high performance and engine load testing environments.
Materials: Made with a three ply construction. All fabric is asbestos free, specially coated with high temperature stabilizers. One ply is a woven stainless steel cloth used for strength and stability. Temperature resistance is 2010°F (1099°C) with a spike temp of 2370°F (1300°C). The plastic helix cover is not available due the high heat capacity.
Standard Lengths: Sold by the foot, with a minimum of 10 ft (3 m).
DIAMETERS AND WEIGHT AVAILABLE
- 4 in. (100 mm) / 1.29 lbs/ft (1,92 kg/m)
- 5 in. (125 mm) / 1.60 lbs/ft (2,38 kg/m)
- 6 in. (150 mm) / 1.93 lbs/ft (2,87 kg/m)
- 8 in. (200 mm) / 2.57 lbs/ft (3,82 kg/m)

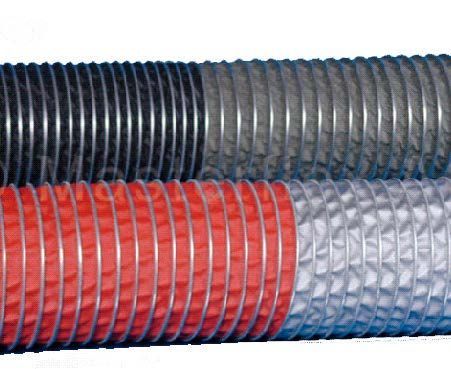

COMBO HOSE
Combo hose assemblies can be made with any of the external helix hoses by combining different hose materials while building the hose. A “Combo” hose is generally selected due to the exhaust temperature dropping 40-50% within the first 5-10 ft. (1.5-3 m) of hose length when additional ambient airflow mixes with the actual vehicle exhaust in the hose. Considering this decrease in temperature, you may be able to use a short section of a higher temp hose at the tailpipe end and a lower temperature hose as the upper section. Combination hoses are available from the manufacturer if custom ordered. Alternatively, a splicing collar can be used to join two different hoses in the field. Splicing collars can also be used to repair a torn hose.
- External helix, mechanically constructed hose utilizing no glues or adhesives.
- Two part hose construction - contact Plymovent for further assistance.
- Continuous operation temperature rating 350°F. Spike temperature rating 375°F.
- A lower hose material (lower 5 ft.), synthetic high temperature fiberglass lined fabric.
- Continuous operation temperature 570-600°F. Spike temperature rating 660-700°F.
A variety of fabric material combinations are available upon request in the following:
- HT 750 / HT 1200
- HT 1000 / HT 1500
- HT 1200 / HT 2010
Accessories
Splice collars
Hose connection splice collars are available with and without debris screens. These can be used to join two different hoses or repair a torn hose.

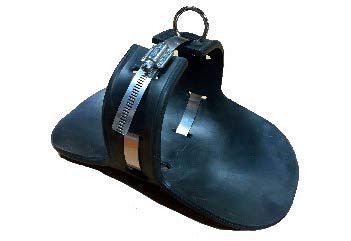

Saddles
Based on the Plymovent system being installed, a metal or rubber saddle will provide maneuverability and strength.

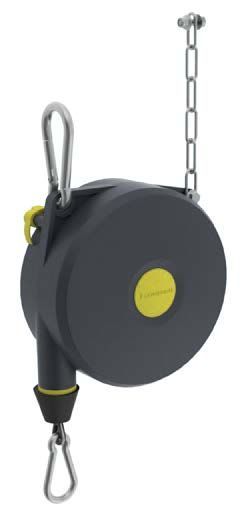

Balancer
Plymovent recoil balancers (used on Fixed Extractors) are used to hold the hose up off the floor when not in use. They come with a ratchet lock which holds the cable at the extended position when the hose is in use.

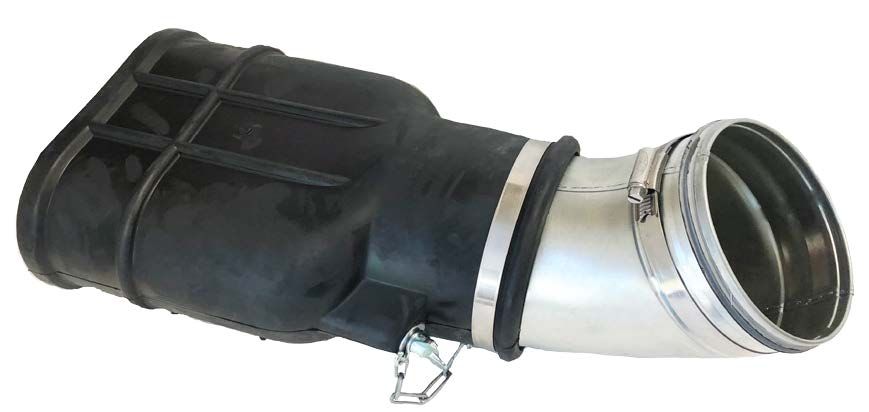

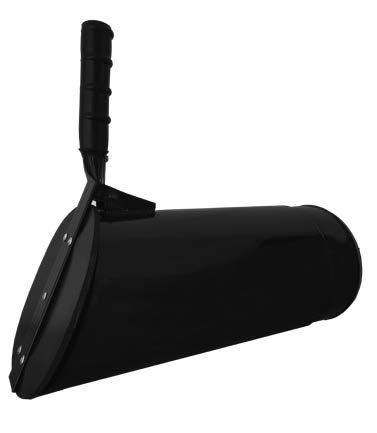

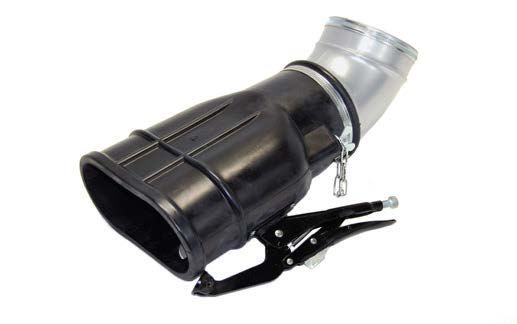

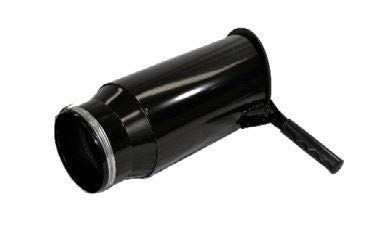

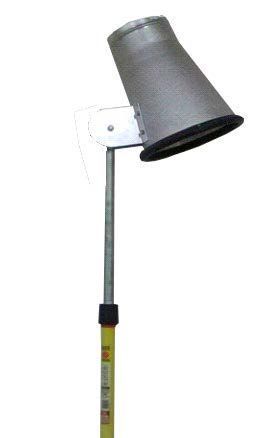

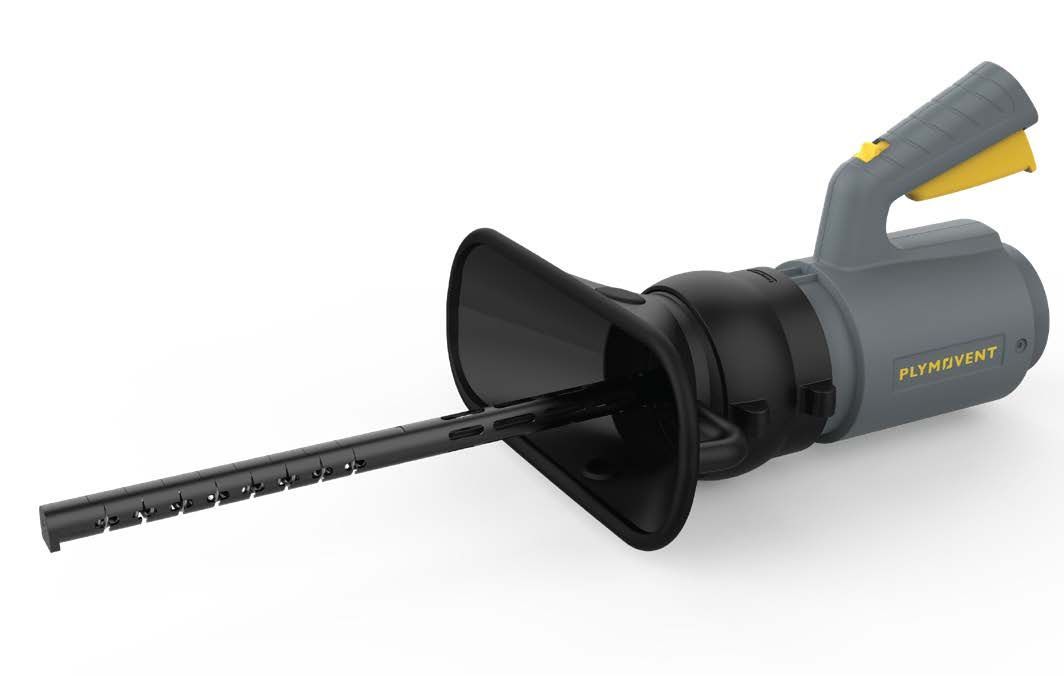

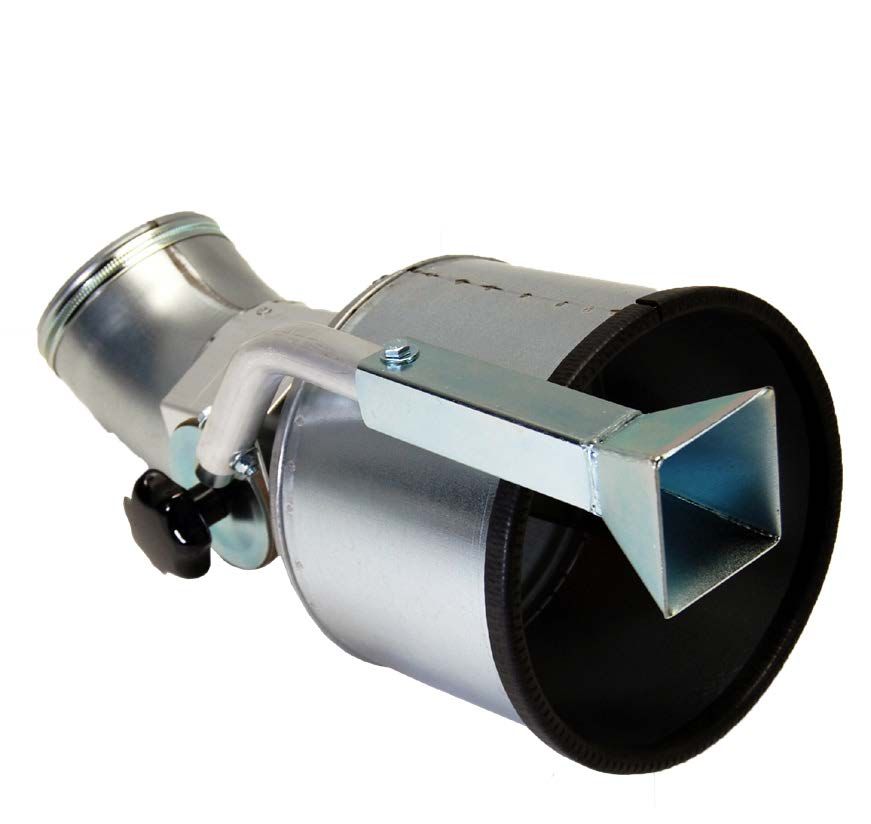

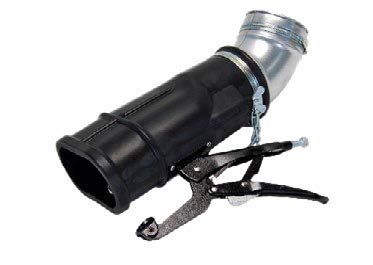

Nozzles
Plymovent nozzles are available to fit many tailpipe locations, shapes and diameters within a single fleet. This includes a variety of EPDM rubber nozzles, stainless cone nozzles for high temperature applications, and a variety of stacker nozzles for vertical stack tailpipes. All of Plymovent nozzles can be equipped with spring clips or vise grips for attachment purposes. Quick disconnect couplers are also available to allow swapping of different nozzles on one hose.
Agricultural equipment facilities
Fleet service & repair bays
Agricultural equipment facilities
Crushproof Tubing
Exhaust Hoses
Crushproof® Tubing Company has been leading the exhaust hose industry through innovative design and on-going development since 1949. We have the most complete and affordable line of exhaust service products available.
- Can be crushed by a vehicle and will return to original shape (non-wire versions).
- Use for temperatures up to 600⁰F with proper system in place.
- Best value. Costs far less than alternatives and easier to install.
- Our threaded adapters can be quickly screwed onto or into the tubing.
- Join hoses together without the need of a separate splice (FlareLok only)

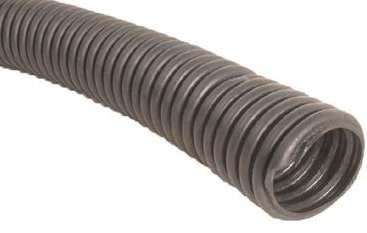

Flarelok®
FLT200 2” ID X 11’ LENGTH
FLT250 2.5” ID X 11’ LENGTH
FLT300 3” ID X 11’ LENGTH
FLT400 4” ID X 11’ LENGTH

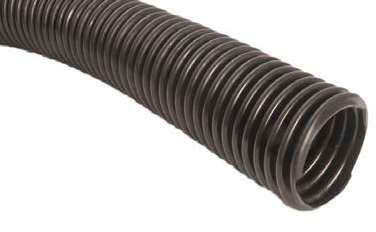

Act Hose
ACT400 4” ID X 11’ LENGTH
ACT400W11 4” ID X 11’ WITH WIRE
ACT500 5” ID X 11’ LENGTH
ACT500W11 5” ID X 11’ WITH WIRE
ACT600 6” ID X 11’ LENGTH
ACT600W11 6” ID X 11’ WITH WIRE
20 Foot Options
40-20 4” ID X 20’ LENGTH
50-20 5” ID X 20’ LENGTH

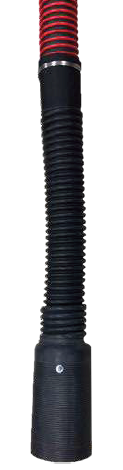

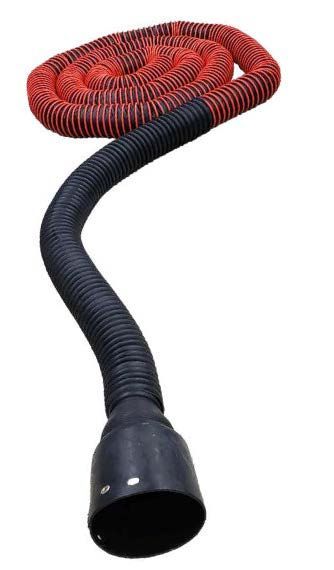

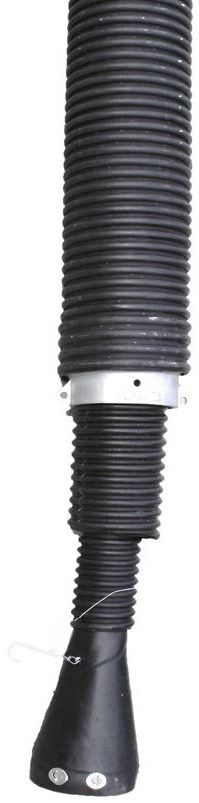

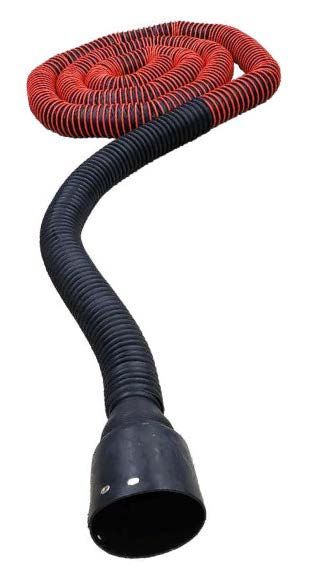

M.o.d.o.r. Hose
Crushproof.’s MODOR (Multipurpose Overhead Drop Or Reel) series hose combines the best of both worlds for overhead drop systems or reel applications. The first 20’ is a lightweight, reinforced hose and the last 5’ is our 100% rubber hose with an included adapter. This design lets our rubber blend take the brunt of the heat and prevents damage in the most commonly run-over section of an overhead hose.
Stock sizes are 4”, 5”, and 6” ID x 25’ length, and Custom ID’s and lengths are also available. MODOR hoses are rated to 570⁰F when used with a fan assisted system.
MATERIALS
20’ Lightweight Section:
Hose Wall: unique high temperature film.
External Helix: 4” hose uses crush-resistant
plastic helix. 5” & 6” hoses use galvanized
steel with a plastic abrasion protection layer.
5’ Rubber Section:
Solid, crush-proof EPDM construction.
Part No.
MODOR-4
MODOR-5
MODOR-6
I.D.
4”
5”
6”
Length
25'
25'
25'
Bend Radius
4.0”
3.0”
3.6”
Weight
25 lbs
29 lbs
33 lbs
Adapter
F700
DSR600
DSR8600
Negative (in. w.c.)
72
20
14

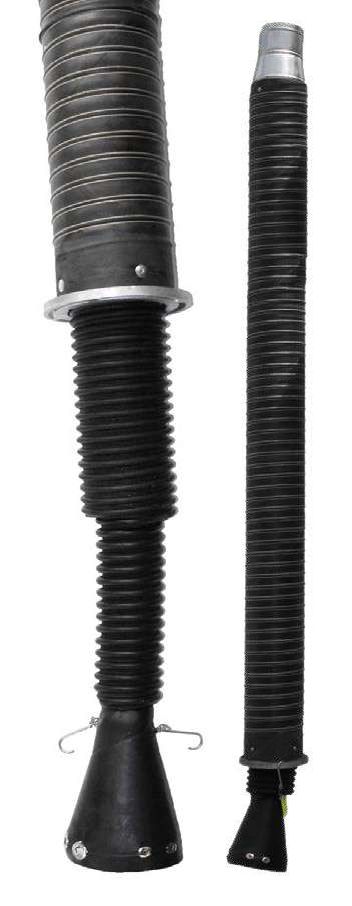

Lightscope 643
Extends from 7' to 16'9" and is only 19 lbs!
The LS643 is an out-of-the-box solution for your basic overhead system needs. It works on all gas vehicles because you can change out the stock RA300 adapter (included) for any of our other 3" threading adapters or for a Y assembly in dual exhaust applications. It comes fully assembled and installs in minutes to a 5" duct. Use a quality reducer adapter if you have a different size.
There are hooks on the adapter that allow it to be stored as each of the three lengths of hose collapse into each other. The hooks rest inside holes on the metal flange at the base of the 6" diameter section.
A) Duct connector designed for a 5" "T" or stub. Extend "T" or stub to increase length of unit.
B) 6" I.D. X 5' 6" high-temp fabric and wire hose.
C) 4 1/2" I.D. x 5' 6" Crushproof® 600°F Garage Exhaust Hose.
D) 3" I.D. x 5' 6" Crushproof® 600°F Garage Exhaust Hose.
E) RA300 Universal Adapter. Comes with three locking snaps that allow unit to be shut off. Will not damage any vehicle and is 100% Crushproof®.
F) Hooks above RA300 hold unit up through holes in a metal ring at the base of the 6” section.

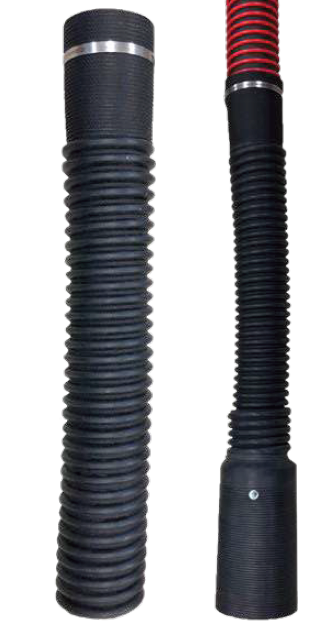

Overhead Hoses
When a lighter weight or higher temperature hose is required in your application, choose one of our high-quality fabric and wire hoses. There are different options to fit any exhaust application from reels to rails to pulley systems. It is important to review these applications with us to make sure you get the right hose for the job. Not every hose will work in every application, and there are significant cost differences from hose to hose. Our goal is to help you find the best overall value. Here are some key features that our line offers:
- ADAPTER OPTIONS
- FLAME RETARDANT
- 650⁰F TO 2000⁰F
- HIGH TEMPERATURE
- CUSTOM LENGTHS
- CUSTOM COLORS
- REEL, RAIL, OR PULLEY
We can combine the Crushproof. rubber hose with any of our sub-700⁰F rated hoses so that our full suite of adapters and fittings are available, while other fabric and wire hoses leave you stuck with one generic adapter and no Y option. We can even convert your current hoses to a Crushproof. system with our Wire Hose Adapter (shown above) which installs quickly and easily.
Agricultural equipment facilities
Fleet service & repair bays
Agricultural equipment facilities
Specialty Hoses
It is our mission at Crushproof. to provide a complete line of exhaust hose solutions for every situation, whether out-the-door, under-floor, or overhead and for every vehicle on the road. So in addition to our original rubber hoses and lightweight overhead hoses we also offer some specialty products that round out our line. If you have an application that seems to require something you can't find here or elsewhere in our line, please contact your distributor or us directly. We are always happy to develop new products and solutions.

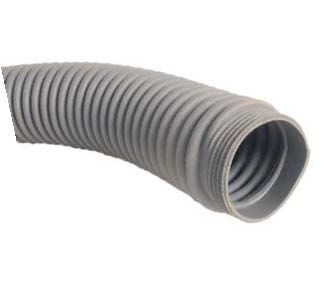

Dyno Hose
Crushproof. Dyno hose is 4" x 11' long and is designed for use with dynamometers and in high performance applications where a crush-proof hose is desired. It will withstand exhaust temperatures of up to 700⁰F when used with a fan assisted system. There are two special adapters designed out of the same material; the F475DYNO and F350DYNO. Both adapters come with a hole in them for sensors or probes to be inserted during dyno testing. Also works well in many other applications.
ACT400DYNO 4” ID X 11’ LENGTH
F350DYNO ROUND 3.5" ADAPTER
F475DYNO OVAL 3" X 6" ADAPTER

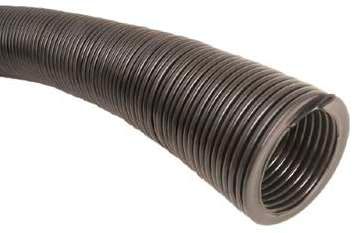

Superflex Hose
Crushproof. SuperFlex hose has an accordian-like design that prevents kinking on tight bends and is great for overhead applications. Our standard adapters will not fit this hose well due to the tight convolution spacing.
40-20SF 4” ID X 12’ LENGTH
50-20SF 5” ID X 8’ LENGH

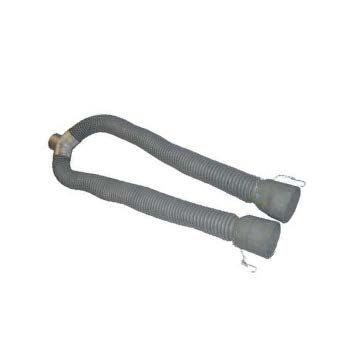

YA4475D
Crushproof. developed the Y4475D as an oversized adapter designed to fit twin tailpipe assemblies that are too large for a traditional adapter. This includes most 2008 and newer Ford. diesel models. It is NOT approved for regeneration cycles. We do have hoses for that purpose in our high-temp fabric and wire line.
40-20 4” ID X 20’ LENGTH
50-20 5” ID X 20’ LENGTH
Agricultural equipment facilities
Fleet service & repair bays
Agricultural equipment facilities
Exhaust hose adapters
Adapters provide the right size and shape to make sure that your exhaust system is capturing all the fumes properly and improves hose life by ensuring better heat distribution. All adapters require a loose fit over the pipe, and a minimum of 1/2” gap of clearance is required for proper performance. A hook and chain is the standard connection method and the optional suction cup (shown right) works for flush-mounted setups and fits most adapters. Just add “SC” at the end of the adapter number.
F700
7” round with snaps to make it smaller. Fits 3” and 4” hose. This is a must-have item for every garage.
F1550
Our largest oval adapter is 3” x 15.5” wide. Works with pipes 2.5” x 15” or smaller. Fits 3” and 4” hose.
F675
3” x 11” oval adapter for extra wide setups. Will work with pipes 2.5” x 10.5” or smaller. Fits 3” and 4” hose.
F575
Oval adapter for wide or twin pipes. Roughly 3” x 8” wide. Will work for pipes 2.5” x 7.5” or smaller. Fits 3” and 4” hose.
Wire Hose Adapter
Adapt a fabric and wire hose into a Crushproof© one! Tapered end clamps to your hose so you can
use our adapters and fittings.
F475
Oval adapter for wide or twin pipes. Roughly 3” x 6” wide. Will work for pipes 2.5” x 5.5” or smaller. Fits 3” and 4” hose.
F450 / F400 / F350 / F300 / F250
Round adapters work with straight pipes that are at least 1/2” smaller in diameter than the adapter opening Part numbers designate true ID, so F450 is 4.5” while F300 is 3.0”. Hose fit guide: FLT200: F250. FLT250: F250, F300. FLT300: F250, F300, F350. FLT400: F350, F400, F450
RA300 & RA250
5” bell adapter with snaps for an adjustable fit on a wide variety of pipes. RA300 fits 2” & 3” hose. RA250 fits 3.5” and 2.5” hose.
Agricultural equipment facilities
Fleet service & repair bays
Agricultural equipment facilities
DIESEL STACK ADAPTERS
Adapters provide the right size and shape to make sure that your exhaust system is capturing all the fumes properly and improves hose life by ensuring better heat distribution. All adapters require a loose fit over the pipe, and a minimum of 1/2” gap of clearance is required for proper performance. The DSR600, DSR600-6, DSR8600, and DSR9600 all have a rod that allows them to sit safely on top of a stack for proper air flow. All diesel exhaust removal systems should include a fan to ensure safe operation.

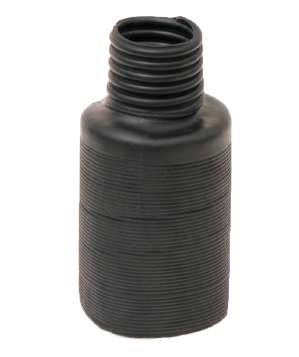

F800
8” round for stacks up to 7.5” O.D. and fits on our 4” hoses. Also popular for larger ground-based applications like buses.

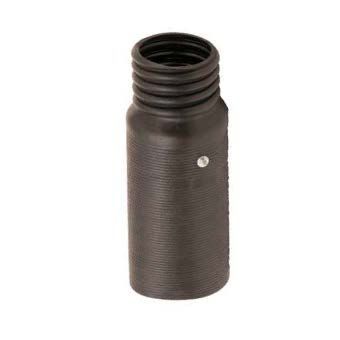

DSR600
6” round for stacks up to 5.5” O.D. and fits on our 4” and 5” hoses.
DSR600-6
6” round for stacks up to 5.5” O.D. and fits on our 6” hoses.

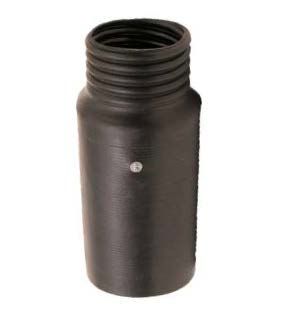

DSR8600
8” round for stacks up to 7.5” O.D. and fits on our 5” and 6” hoses.

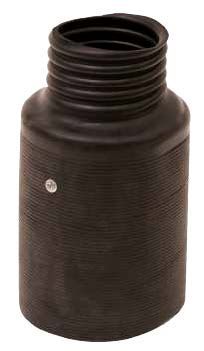

DSR9600
9” round for stacks up to 8.5” O.D. and fits on our 5” and 6” hoses.

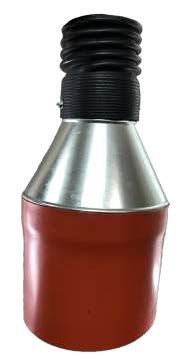

DSR1200-6
12” round adapter with silicone base that threads on our 6” hoses. Designed for the largest applications up to 11” round.
Agricultural equipment facilities
Fleet service & repair bays
Agricultural equipment facilities

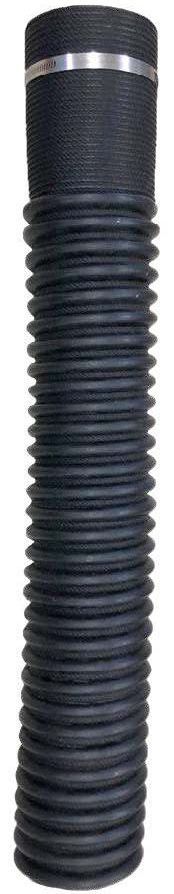

Wire Hose Adapter (WHA)
Do you already have a complete shop outfitted with wire reinforced hose?
Are you having trouble finding the proper tailpipe adapters or “Y” kits to fit your existing hose?
The Crushproof Wire Hose Adapter (WHA) series will solve all your issues. Each WHA adapter has two feet of crushproof hose with a slightly tapered cuff that will clamp onto your existing hose. This will allow you to implement the entire Crushproof line of garage exhaust hose accessories.
- Oval tailpipe adapters up to 15.5” wide.
- Patented suction cup adapters for flush mount tail pipes.
- Dual exhaust “Y” kits for the 3” and 4” size.
- Diesel stack adapters up to 12” ID.
The possibilities are endless. It is time you take advantage of the broadest line of garage exhaust hose accessories in the industry!
WHA-3: 3” ID WIRE HOSE ADAPTER & CLAMP
WHA-4: 4” ID WIRE HOSE ADAPTER & CLAMP
WHA-5: 5” ID WIRE HOSE ADAPTER & CLAMP
WHA-6: 6” ID WIRE HOSE ADAPTER & CLAMP
WHA-4 with YA400
WHA-4 with DSR600
Agricultural equipment facilities
Fleet service & repair bays
Agricultural equipment facilities
Y-KITS & DEALERSHIP KITS
Crushproof® supports today’s ever changing and wide variety of tailpipe configurations better than anyone. Our full suite of adapters and Y setups allows you to service vehicles with wide pipes, dual exhaust, and everything in-between. Below you will find our standard Y and dealership kits that offer a discount off the component prices, but you can always create your own by getting a Y adapter and cutting an extra hose in half.

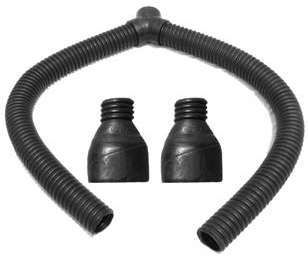

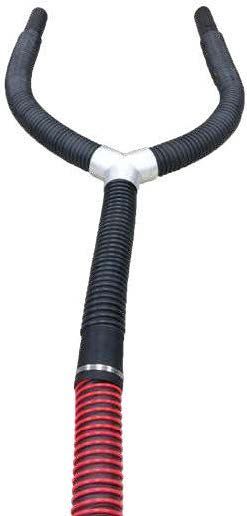

Y-Assemblies
Designed to convert a single exhaust hose into a dual kit for servicing many of today’s most popular cars and trucks. These come at a savings versus buying everything separately. The table below shows the hose diameter (4’ lengths) and what pair of adapters comes with it, along with the Y itself.
HOSE I.D.
Y FITTING
ADAPTERS
YA250
2.5”
RY25
F250
YA300
3”
RY30
F300
YA400
4”
AY40
F350
YA575
3”
RY30
F575
YA3675
3”
RY30
F675
YA3675-SC
3”
RY30
F675-SC
DEALERSHIP & SERVICE KITS
Exhaust kit in a box with a savings over buying the parts separately. All kits include (1) six foot and (2) four foot lengths
of hose, Y connector, splice connector, and (2) adapters.
HOSE I.D.
Y FITTING
SPLICE
ADAPTERS
DSS25
2.5”
RY25
SP25
F250
DSS30
3”
RY30
SP30
F300
DSS40
4”
AY40
SP40
F400
DSS675-SC
3”
RY30
SP30
F675-SC
Agricultural equipment facilities
Fleet service & repair bays
Agricultural equipment facilities
Exhaust Hose Fittings
Door Ports
Port diameter is greater than ID shown to fit hose OD. (EX: ADF40 requires a 5.5” hole.)
DF25 — 2.5” ID HOSE (rubber)
ADF30 — 3" ID HOSE (aluminum)
ADF40 — 4” ID HOSE (aluminum)
*Designed for 1” thick doors.
Y Connectors
For use with dual exhaust vehicles.
RY20 — 2” ID HOSE (rubber)
RY25 — 2.5” ID HOSE (rubber)
RY30 — 3” ID HOSE (rubber)
AY40 — 4” ID HOSE (aluminum)
*Used for vehicles with dual exhaust. “Y” kits are available as well.
SPLICE CONNECTORS
Rubber splices are crush-proof.
AC30 — (3”) SP25 (2.5”)
AC40 — (4”) SP30 (3”)
AC50 — (5”) SP40 (4”)
AC60 — (6”)
*AC is the aluminum version and SP the rubber version.
ALUMINUM ELBOWS
Eyelet allows for use with rope when splicing two lengths in overhead pulley systems.
AEL25 (2.5”) — AEL50 (5”)
AEL30 (3”) — AEL60 (6”)
AEL40 (4”)
OVERHEAD CONNECTORS
Connects Crushproof® hoses to a “T” in an overhead duct system.
OC30 — 3” ID HOSE/DUCT
OC40 — 4” ID HOSE/DUCT
OC50 — 5” ID HOSE/DUCT
OC50-D — 5” VERSION W/ DAMPER
Agricultural equipment facilities
Fleet service & repair bays
Agricultural equipment facilities
Other Parts
Balancer-300
STANDARD FIRE Balancer
The Balancer-300 is used to keep the exhaust extraction hose from the ground, thereby minimising the risk of damage to the hose and surroundings it also enables easy operation of the exhaust extraction system. The balancer safety chain is there as an additional safety feature.

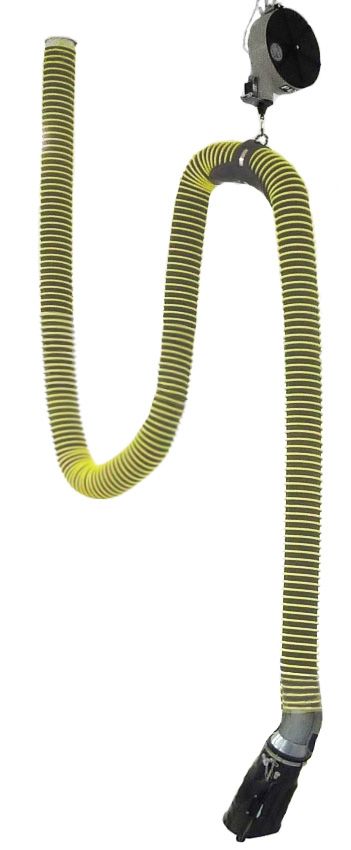

FIXED EXTRACTOR (FE) & (FEF)
VEHICLE EXHAUST REMOVAL SYSTEM
The Fixed Extractor (FE) is a cost-effective single hose drop that removes vehicle exhaust from small workshops or where there is limited space. The FE can be located between two service bays so that one hose can serve both bays if necessary. The spring
recoil balancer can pull the hose up and out of the way when not needed.
FE can be connected to either a central duct or an optional direct mount fan (FEF model).
NOTE: Hose and nozzle are additional components. Please refer to separate product data sheets for more information.
INTERNAL GRABBER
UNIVERSAL EXHAUST EXTRACTION NOZZLE
The Internal Grabber® is used to connect internally to the virtually all tailpipe shapes as well as flush tailpipes. The Internal Grabber is able to hose a variety of hose diameters. It is designed to connect to tailpipes, immediately limiting the danger of exhaust emissions exposure for the user and other personnel. Next to an unmatched flexible connection beak the Internal Grabber includes a soft edged, sliding and pivoting skirt with optimizing docking possibilities while maximizing exhaust extraction. The Internal Grabber comes standard with an automatic shut-off damper as well as a magnetic mounting tripod for easy out of way storage.
METAL EXHAUST NOZZLE
The Metal Exhaust Nozzle (MEN) is highly suitable for Plymovent fixed extractors and exhaust reels. The MEN is designed to take in ambient cooling air thereby reducing the exhaust emission temperature.
The nozzle comprises a powder coated metal pipe and a springloaded metal lid. The rubber lid which shuts tight and functions as a draught valve when the nozzle is not being used, opens using a rubber-faced handle.

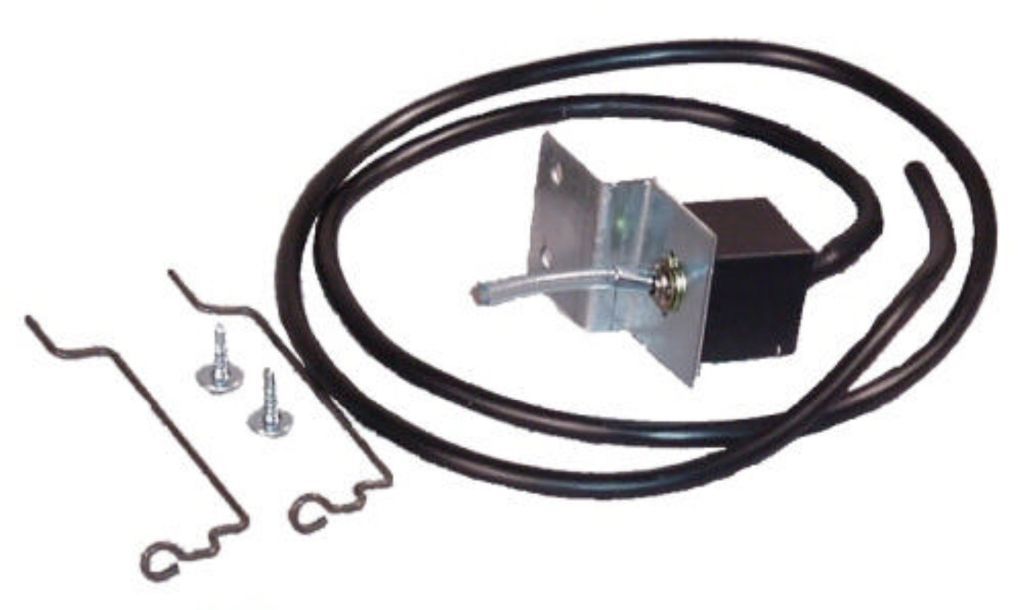

Micro Switch for Hose Reels
MSR-24/2 is a single throw, double pole micro switch, typically used for fan start/stop from the operators use of a hose reel. This double pole switch will allow automatic fan start via connection of one switch circuit to a Plymovent SA-24, ES-90 or DCV control unit. The second switch circuit can be used to open a motorized damper, provide a signal to a BAS system or provide a contact to open or close an exhaust damper located after the fan discharge.
NOTE: When using the MSR-24/2 to control the motorized damper, there is no fan after-run ability when connected to a SA-24 or DCV controller, although there is when using the ES-90 fan control box.
One MSR-24/2 is needed per hose reel. The switch comes with two formed steel “wipers” which connect to the HR drum and trip the silicone hose on the switch toggle when the hose reel drum rotates.

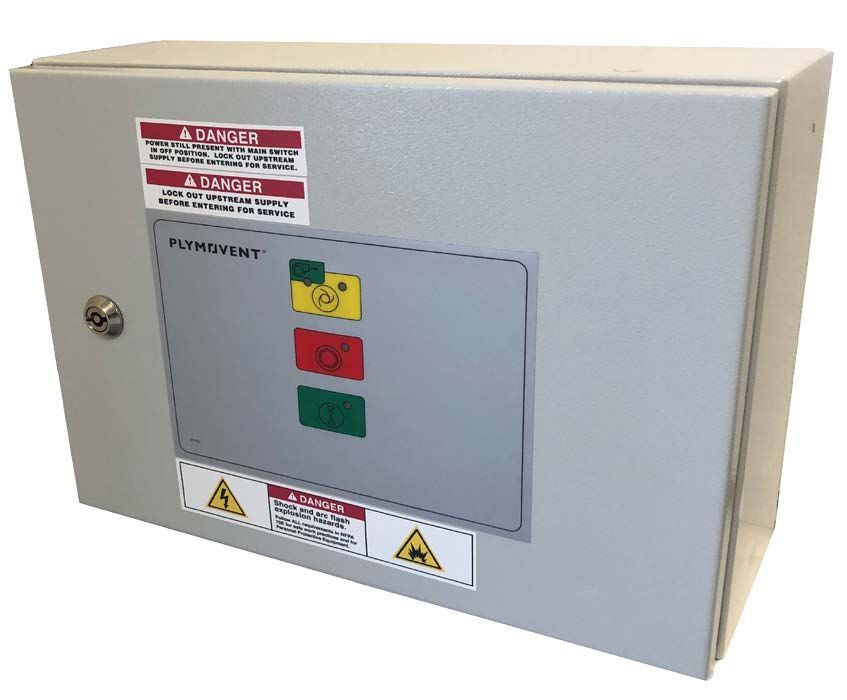

ES-90
Control Equipment
The ES-90 control box is an energy saving control unit designed to provide start/stop control of an exhaust fan. The controller can be set for both manual or automatic control of the fan.
A built-in “delay off” function allows the fan to run for a defined time period after the vehicle has been disconnected, to ensure all of the exhaust has been removed. The ES-90 also includes an optional remote alarm relay connection for Building Automation Systems (BAS).

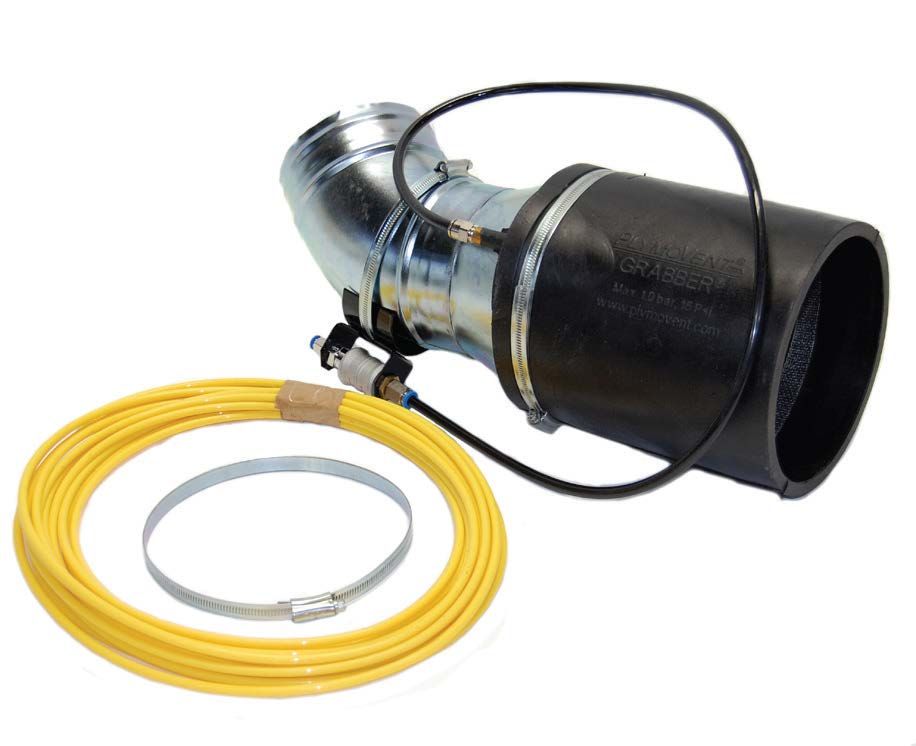

PNEUMATIC GRABBER®
VEHICLE EXHAUST REMOVAL SYSTEM
The Pneumatic Grabber® connects to the vehicle exhaust pipe via an inflatable rubber bladder. The Grabber® can be deflated manually. The unique rubber construction is ideal for applications requiring a soft connection that will not damage the exhaust pipe. This nozzle is used mainly in areas where vehicles move in enclosed spaces.
RUBBER NOZZLE WITH VICE GRIP
The REG nozzle is a rubber extraction nozzle equipped with a vice grip to maximize its holding power to the tailpipe. It includes a CO outlet and is recommended for use in truck repair and service facilities.
The REGD is a variant of the REG nozzle and includes a damper to close off systems that are not in use.
The REG is also available with a manual on/off damper to close off systems that are not in use (REGD versions).
RUBBER NOZZLE
Nozzle
The REN is highly suitable for Plymovent fixed extractors and exhaust reels. The REN is designed to take in ambient cooling air thereby reducing the exhaust emission temperature.
The nozzle is made up of a powder coated metal pipe and moulded, high temperature resistant rubber. A CO outlet is provided for measuring CO emissions.

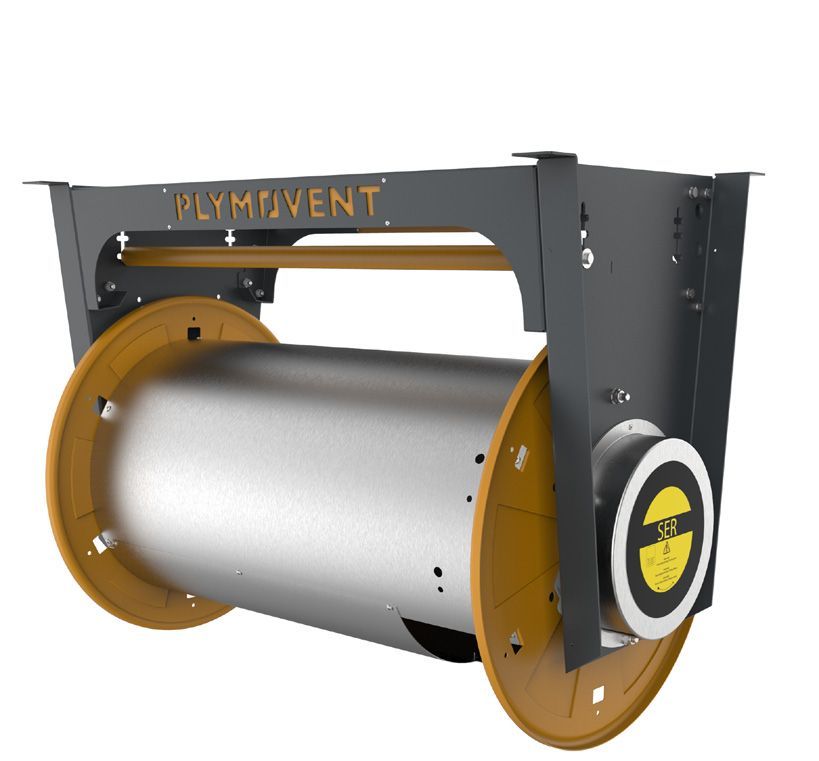

SPRING OPERATED HOSE REEL
VEHICLE EXHAUST EXTRACTION REEL
The spring operated hose reel (SER) uses an enclosed spring cassette to recoil the exhaust hose. An operator can pull down the hose to the desired position and pull down again to retract the hose.
SER is recommended for small to medium-sized working areas in which the hose needs to be stored when not in use - limiting potential damage to personnel and vehicles. This hose reel also limits potential damage to personnel and vehicles. The SER maximum lifting capacity is 18 kg (40 lbs)*.
* at hose diameter 150 mm (6 in.)
Stacker
NOZZLE
The stacker is used to connect exhaust extractors to vertical/ upward turned exhaust pipes and to exhaust pipes that are centrally positioned under a vehicle.
The stacker consists of a reduced elbow joint with an adjustable mounting arm and a metal joint with rubber protecting border.
With the optional telescopic handle, the operator can easily connect the stacker to the upstanding tailpipe without having to climb on the vehicle.
TELESCOPIC HOSE
TELESCOPIC HOSE SYSTEM
The TE-OHEH-CP overhead system works on all gas vehicles and come fully assembled and can be installed in minutes. To use the product, release the hooks from the metal ring, and the telescoping hoses slide out from each other so that the rubber nozzle can be connected to the vehicle exhaust tailpipe. The TE-OHEH CP stores three lengths of hoses that collapse into each other. The hooks hold the hoses up via a metal ring at the base of the 6 in. diameter hose section and, when not used, make a clean appearance for the shop area.
